uSlices

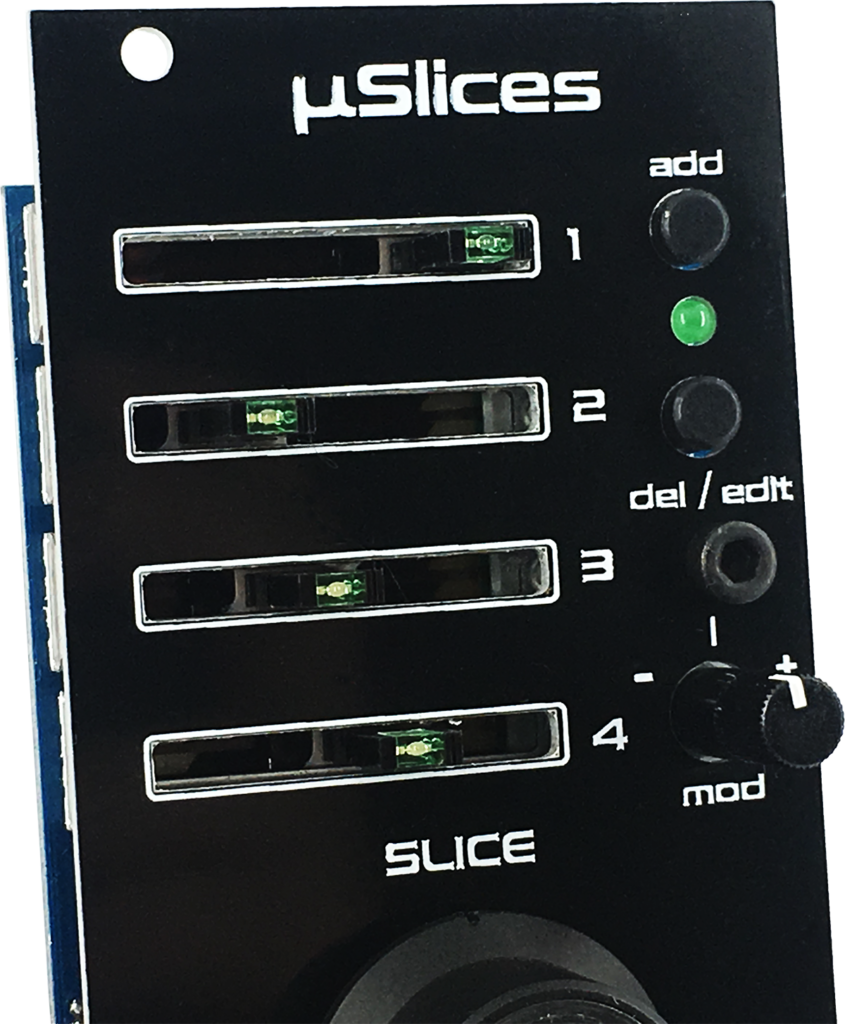

µSLICES IS A SMALL FORMAT ADAPTATION OF THE ORIGINAL MUTABLE INSTRUMENTS “Frames” MODULE

µSLICES IS PRE-FLASHED WITH LAST OFFICIAL OR PARASITE FIRMWARE AND FACTORY CALIBRATED

IT USED THE SAME CIRCUIT DESIGN AS THE ORIGINAL MODULE BUT IMPLEMENTED INTO ONLY 10HP

4-channel voltage-controlled mixer based on the V2164 IC.

4 DC-coupled signal inputs.
1 global input, sent to all unconnected inputs, and normalized to a precision voltage reference (+5V or +10V).
4 DC-coupled channel outputs.
1 global mix output, collecting signals from all unpatched outputs, with a -6dB gain.

12-bit digital control of the gains for the 4 VCAs.
Up to 20 keyframes, each keyframe storing VCA CVs for each channel.
Per-channel easing curve selection: stepped (no interpolation), linear, accelerating, decelerating, sine, bouncy.
Per-channel CV/VCA response selection, from linear to logarithmic. Specifications CV input impedance: 100k. Audio input impedance: 100k (25k for the global input in some configurations due to normalling). Fastest modulation rate: 15kHz.

CV input impedance: 100k.
Audio input impedance: 100k (25k for the global input in some configurations due to normalling).
Fastest modulation rate: 15kHz.

Width: 10 HP

Deep: 25 mm

+12V: 90 mA

-12V: 30 mA

Original Frames designed by Olivier Gillet of Mutable Instruments.

CC-BY-SA 3.0
